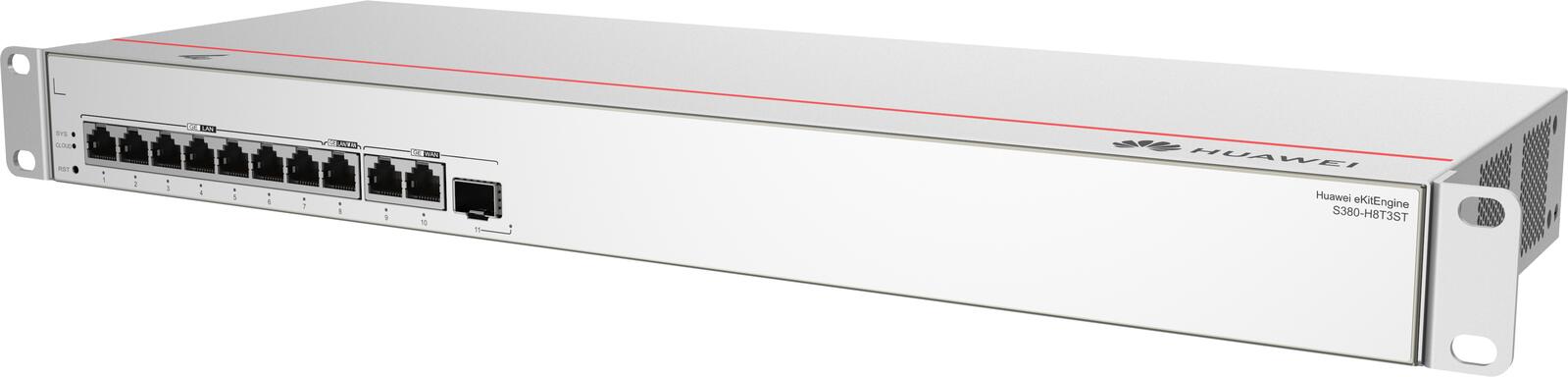

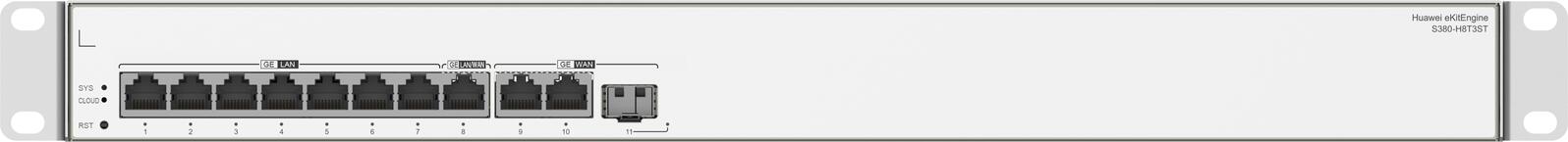

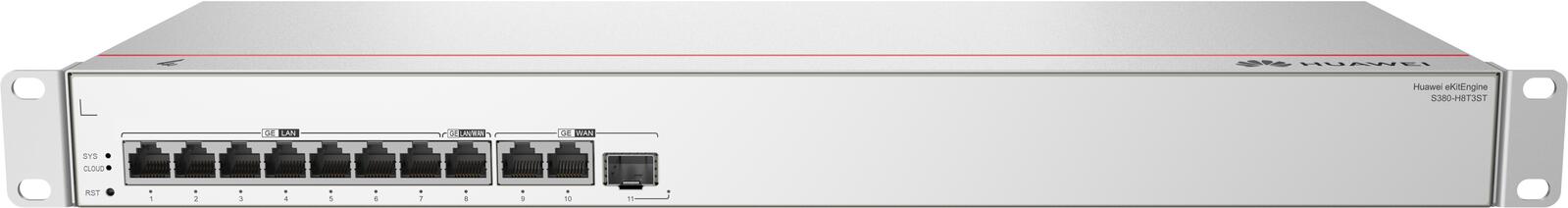

Huawei eKit Gateway S380-H8T3ST 8x 1GbE LAN + 1x 1GbE SFP WAN + 2x GbE WAN 98012181

Dimensions without packaging (H x W x D) [mm(in.)] Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 160.0 mm (1.72 in. x 17.4 in. x 6.3 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 166.7 mm (1.72 in. x 17.4 in. x 6.56 in.)

Dimensions with packaging (H x W x D) [mm(in.)] 90.0 mm x 550.0 mm x 260.0 mm (3.54 in. x 21.65 in. x 10.24 in.)

Chassis height [U] 1

Installation type Rack mounting,Desk mounting,Wall mounting

Weight without packaging [kg(lb)] 1.6 (3.53)

Weight with packaging [kg(lb)] 2.1 (4.63)

Typical power consumption [W] 11.25

Maximum power consumption [W] 11.5

Maximum heat dissipation [BTU/hour] 39.2

Static power consumption [W] 6.49

100% power consumption [W] 11.49

Maximum number of physical ports on the entire device 11

Maximum number of GE ports 11

Long-term operating temperature [°C(°F)] 0°C to 40°C (32°F to 104°F) at an altitude of 0-1800 m (0-5906 ft.)

Restriction on the operating temperature variation rate [°C(°F)] When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).

Storage temperature [°C(°F)] –40°C to +70°C (–40°F to +158°F)

Long-term operating relative humidity [RH] 5% RH to 95% RH (non-condensing)

Long-term operating altitude [m(ft.)] 0–5000 m (0–16404 ft.)

Storage altitude [m(ft.)] 0-5000 m (0-16404 ft.)

Power supply mode AC built-in

Rated input voltage [V] AC input: 100–240 V AC; 50/60 Hz

Input voltage range [V] AC input: 90 V AC to 264 V AC; 45 Hz to 65 Hz

Maximum input current [A] 0.8 A

Eth Management port LAN port

Service port surge protection [kV] Common mode: ±4 kV

Power supply surge protection [kV] Power adapter: ±6 kV in differential mode and ±6 kV in common mode

Ingress protection level (dustproof/waterproof) IP20

Heat dissipation mode Natural heat dissipation

Certification EMC certification Safety certification Manufacturing certification
