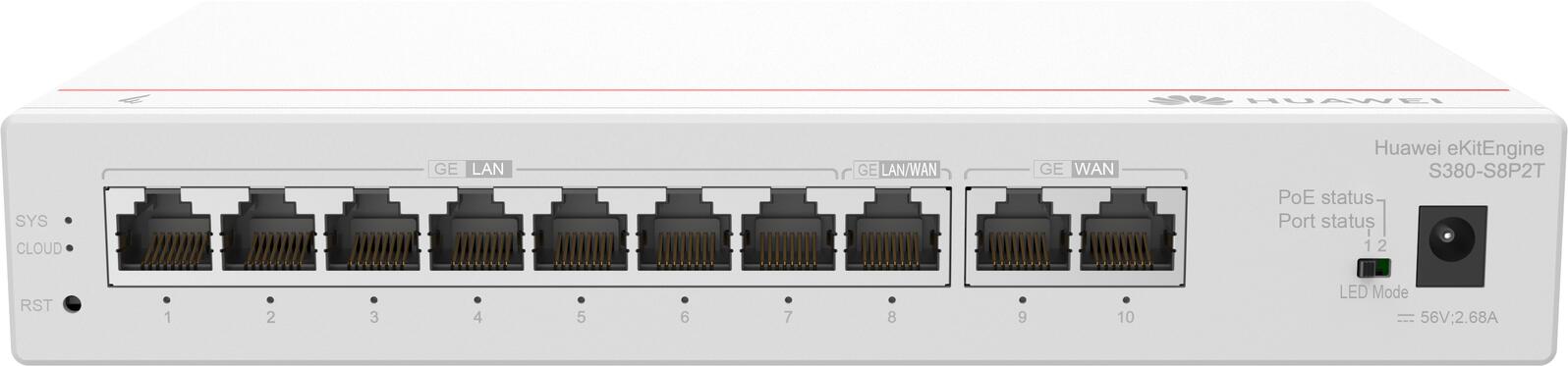

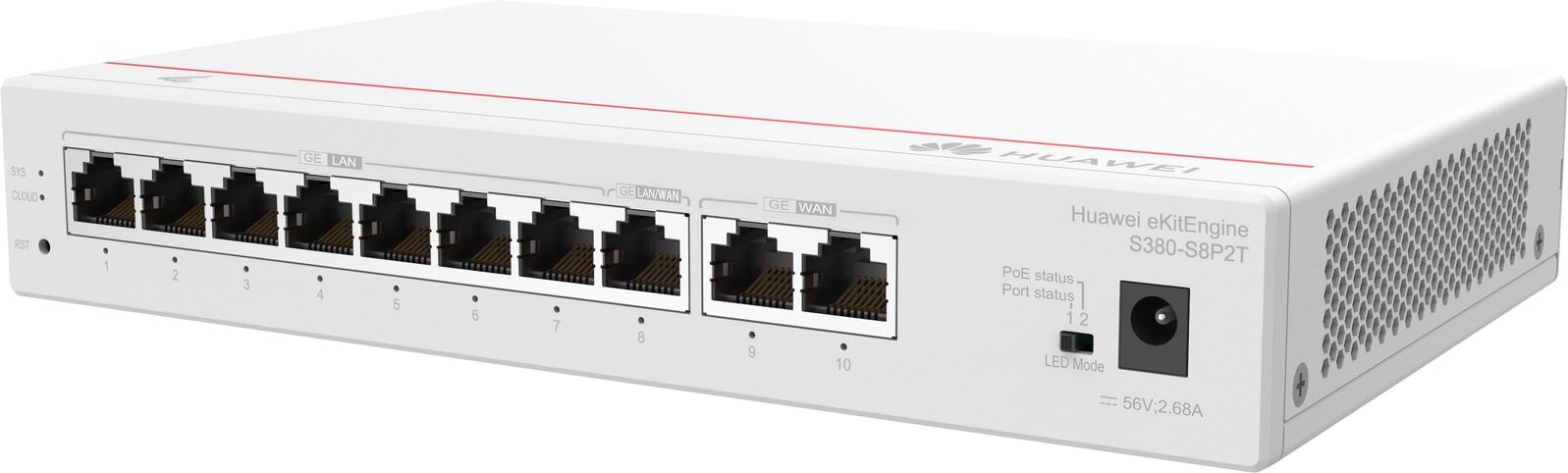

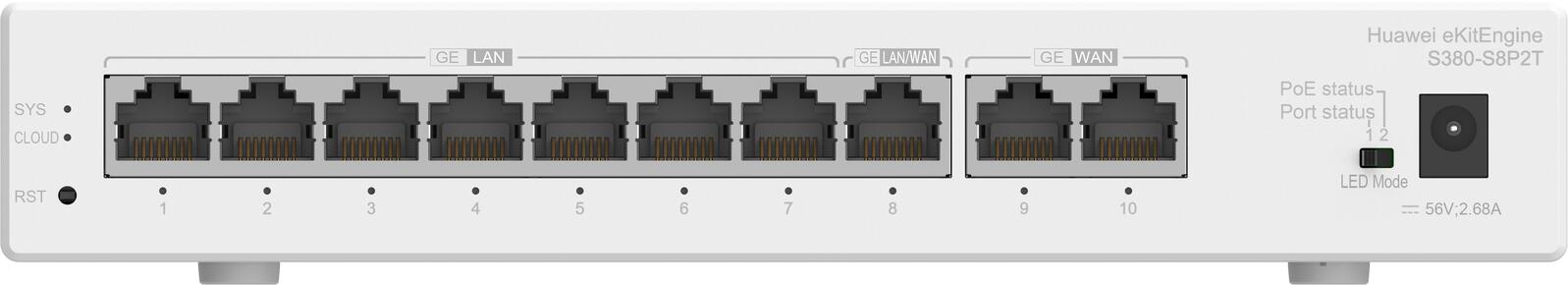

Huawei eKit Gateway S380-S8P2T 8x 1GbE LAN + 2x GbE WAN 98012180

Dimensions without packaging (H x W x D) [mm(in.)] Basic dimensions (excluding the parts protruding from the body): 35.0 mm x 210.0 mm x 130.0 mm (1.38 in. x 8.27 in. x 5.12 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 35.0 mm x 210.0 mm x 136.3 mm (1.38 in. x 8.27 in. x 5.37 in.)

Dimensions with packaging (H x W x D) [mm(in.)] 150.0 mm x 275.0 mm x 200.0 mm (5.91 in. x 10.83 in. x 7.87 in.)

Chassis height [U] 0.8

Installation type Desk mounting,Wall mounting

Weight without packaging [kg(lb)] 1.5 (3.31)

Weight with packaging [kg(lb)] 1.8 (3.97)

Typical power consumption [W] 12.4

Maximum power consumption [W] 145.8 W (PoE: 124 W)

Static power consumption [W] 7.53

100% power consumption [W] 12.52

Maximum number of physical ports on the entire device 10

Long-term operating temperature [°C(°F)] 0°C to 40°C (32°F to 104°F) at an altitude of 0-1800 m (0-5906 ft.)

Restriction on the operating temperature variation rate [°C(°F)] When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).

Storage temperature [°C(°F)] –40°C to +70°C (–40°F to +158°F)

Long-term operating relative humidity [RH] 5% RH to 95% RH (non-condensing)

Long-term operating altitude [m(ft.)] 0–5000 m (0–16404 ft.)

Storage altitude [m(ft.)] 0-5000 m (0-16404 ft.)

Power supply mode Power adapter

Rated input voltage [V] Power adapter input: 100–240 V AC; 50/60 Hz Power adapter output: 56 V DC

Input voltage range [V] Power adapter input: 90–290 V AC; 47–63 Hz

Maximum input current [A] 2.68 A

Eth Management port LAN port

Service port surge protection [kV] Common mode: ±4 kV

Power supply surge protection [kV] Power adapter: ±6 kV in differential mode and ±6 kV in common mode

Ingress protection level (dustproof/waterproof) IP20

Heat dissipation mode Natural heat dissipation

PoE Supported

Maximum PoE power consumption [W] 124 W

PoE+ power interfaces 8

Full load PoE power consumption 15.4W (802.3af) 8

Full load PoE power consumption 30W (802.3at) 4

Certification EMC certification Safety certification Manufacturing certification
