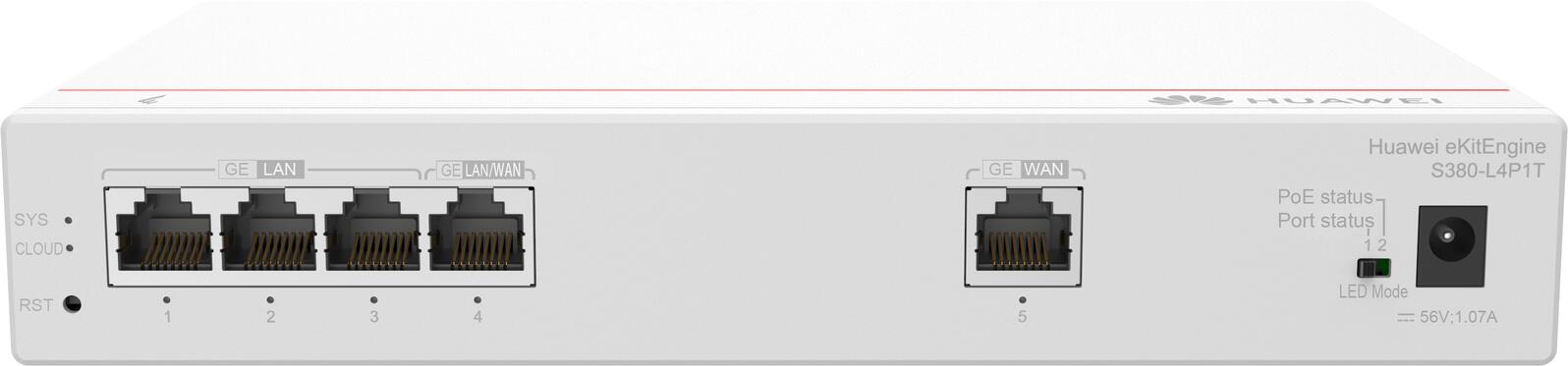

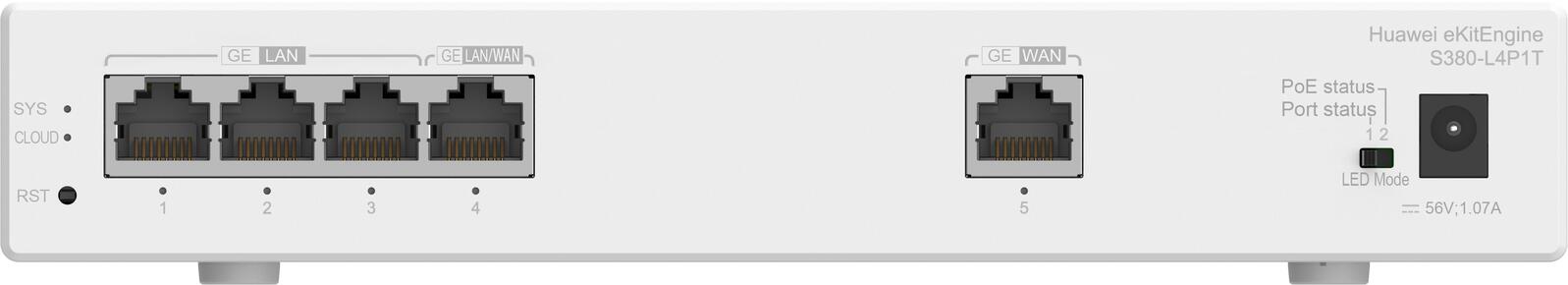

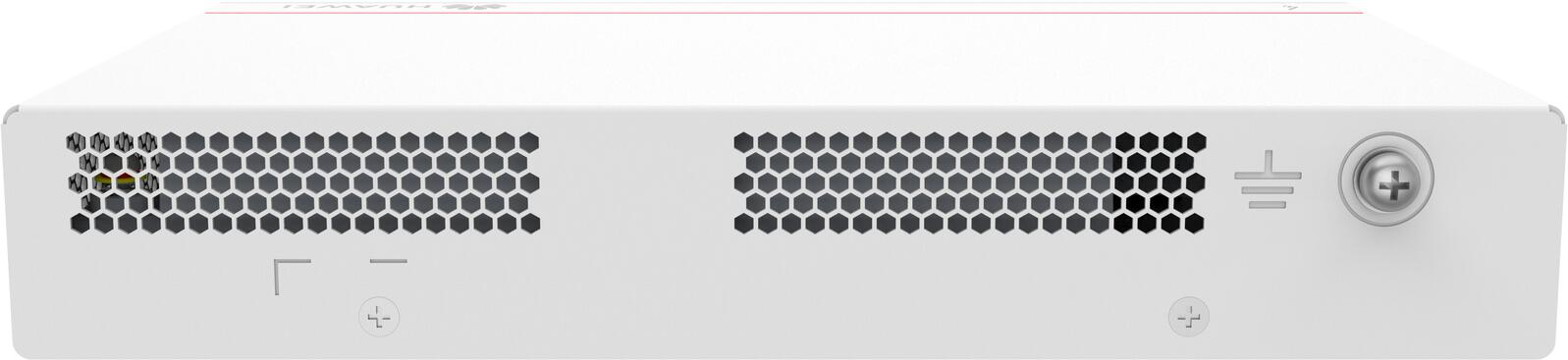

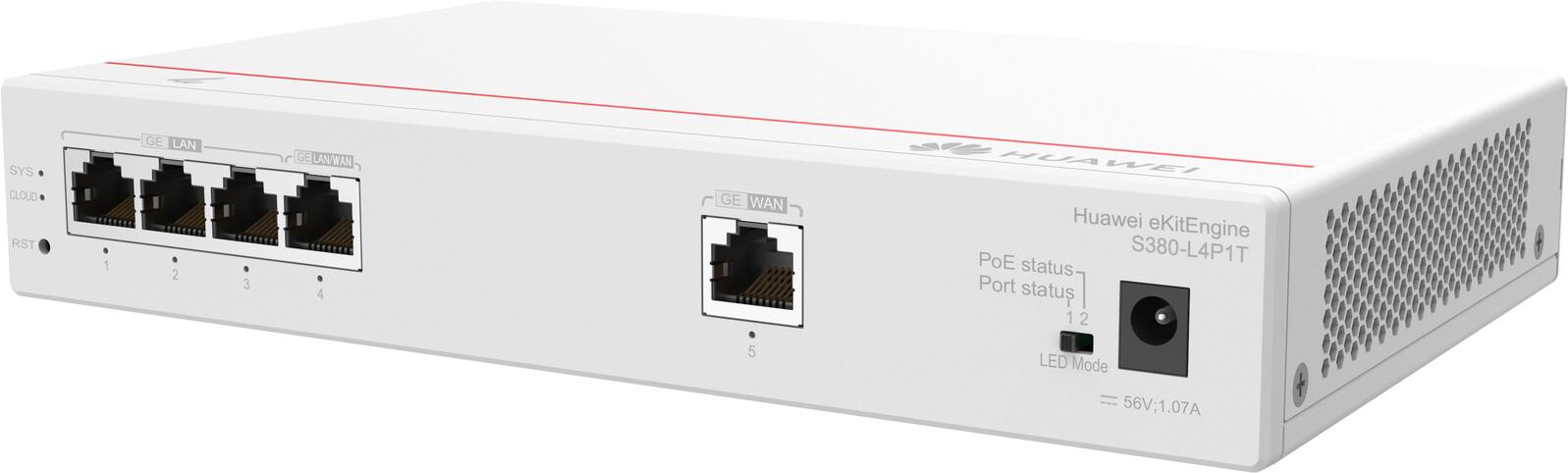

Huawei eKit Gateway S380-L4P1T 4x 1GbE LAN + 1x GbE WAN 98012178

First supported version V600R022C10

Integrated fixed device Y

Dimensions without packaging (H x W x D) [mm(in.)] Basic dimensions (excluding the parts protruding from the body): 35.0 mm x 210.0 mm x 130.0 mm (1.38 in. x 8.27 in. x 5.12 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 35.0 mm x 210.0 mm x 136.3 mm (1.38 in. x 8.27 in. x 5.37 in.)

Dimensions with packaging (H x W x D) [mm(in.)] 90.0 mm x 285.0 mm x 180.0 mm (3.54 in. x 11.22 in. x 7.09 in.)

Chassis height [U] 0.8

Installation type Desk mounting,Wall mounting

Weight without packaging [kg(lb)] 0.9 (1.98)

Weight with packaging [kg(lb)] 1.1 (2.43)

Typical power consumption [W] 7.19

Typical heat dissipation [BTU/hour] 24.5

Maximum power consumption [W] 61.65 W (PoE: 50 W)

Maximum heat dissipation [BTU/hour] 210.4

Static power consumption [W] 4.54

100% power consumption [W] 7.35

MTBF [year] 75.89

MTTR [hour] 2

Availability >0.99999

Noise at normal temperature (acoustic power) [dB(A)] Noise-free (no fans), < 30

Noise at high temperature (acoustic power) [dB(A)] Noise-free (no fans), < 30

Noise at normal temperature (acoustic pressure) [dB(A)] Noise-free (no fans), < 20

Number of card slots 0

Number of power slots 0

Number of fans modules 0

Maximum number of physical ports on the entire device 5

Maximum number of 100GE ports 0

Maximum number of 40GE ports 0

Maximum number of 25GE ports 0

Maximum number of 10GE ports 0

Maximum number of 5GE ports 0

Maximum number of 2.5GE ports 0

Maximum number of GE ports 5

Maximum number of FE ports 5

Dedicated stack port Not supported

Redundant power supply Not supported

Long-term operating temperature [°C(°F)] 0°C to 40°C (32°F to 104°F) at an altitude of 0-1800 m (0-5906 ft.)

Restriction on the operating temperature variation rate [°C(°F)] When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).

Storage temperature [°C(°F)] –40°C to +70°C (–40°F to +158°F)

Long-term operating relative humidity [RH] 5% RH to 95% RH (non-condensing)

Long-term operating altitude [m(ft.)] 0–5000 m (0–16404 ft.)

Storage altitude [m(ft.)] 0-5000 m (0-16404 ft.)

Power supply mode Power adapter

Rated input voltage [V] Power adapter input: 100–240 V AC; 50/60 Hz Power adapter output: 56 V DC

Input voltage range [V] Power adapter input: 90–290 V AC; 47–63 Hz

Maximum input current [A] 1.07 A

CPU Quad-core, 800 MHz

Memory DDR4: 512 MB

Flash memory NAND Flash: 512 MB

Storage -

Console port Not supported

Eth Management port LAN port

USB Not supported

Hardware real-time power detection Not supported

Dying gasp Not supported

RTC Not supported

RPS input Not supported

Complete device sleeping Not supported

Service port surge protection [kV] Common mode: ±4 kV

Power supply surge protection [kV] Power adapter: ±6 kV in differential mode and ±6 kV in common mode

Ingress protection level (dustproof/waterproof) IP20

Types of fans None

Heat dissipation mode Natural heat dissipation

Airflow direction -

PoE Supported

Maximum PoE power consumption [W] 50 W

PoE+ power interfaces 4

PoE++ power interfaces -

Full load PoE power consumption 15.4W (802.3af) 3

Full load PoE power consumption 30W (802.3at) 1

Full load PoE++ power consumption 60W (802.3bt) -

Full load PoE++ power consumption 90W (802.3bt) -

Certification EMC certification Safety certification Manufacturing certification
