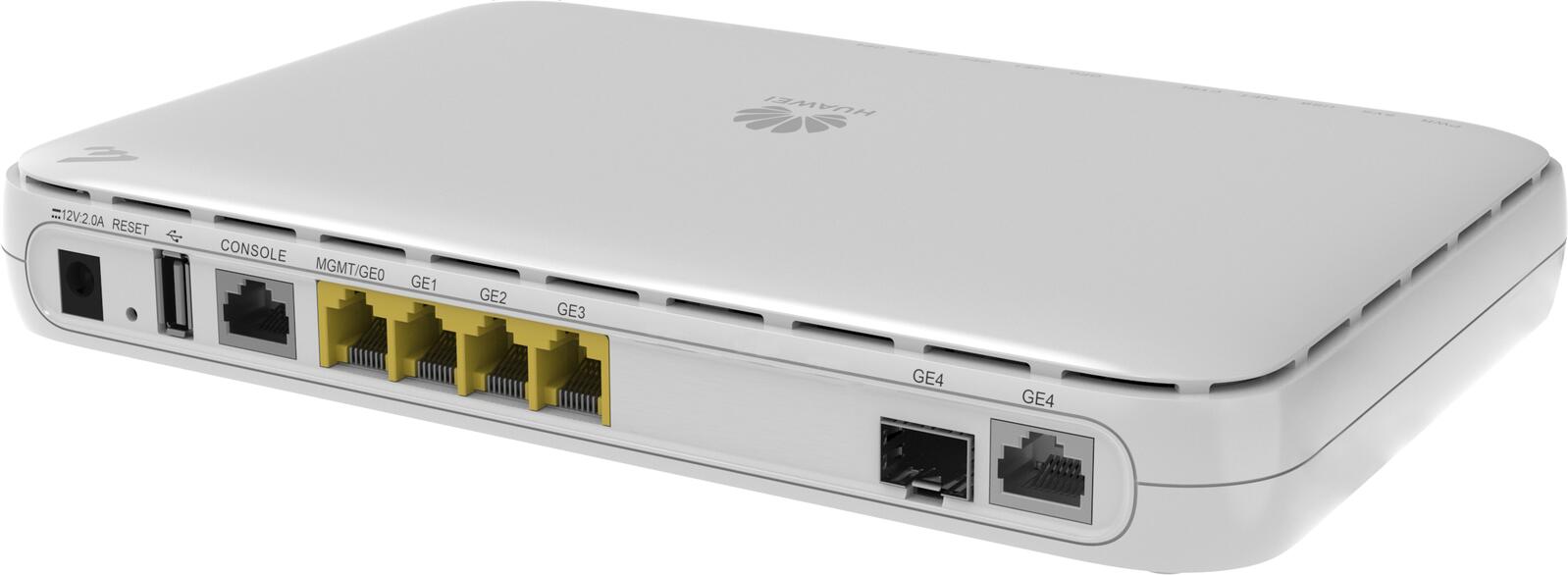

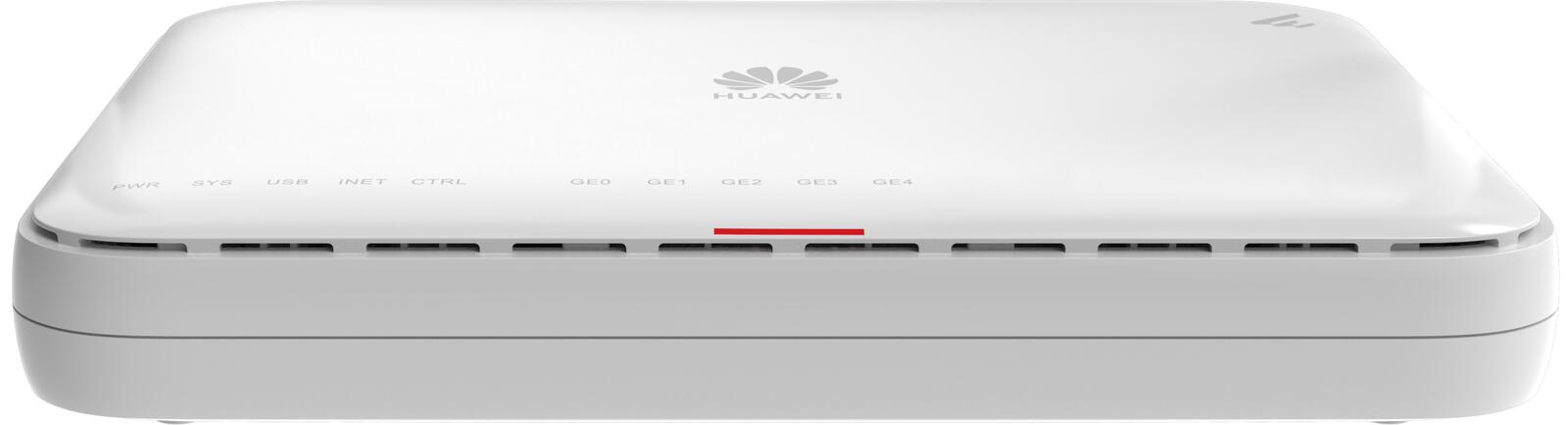

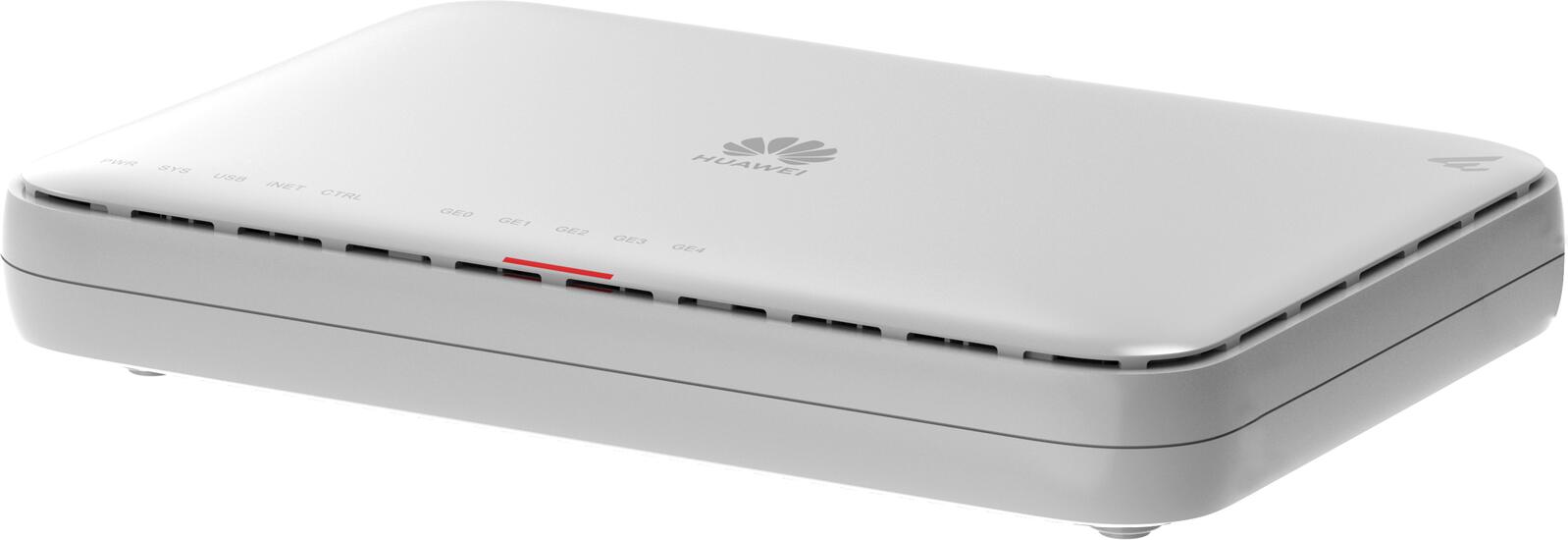

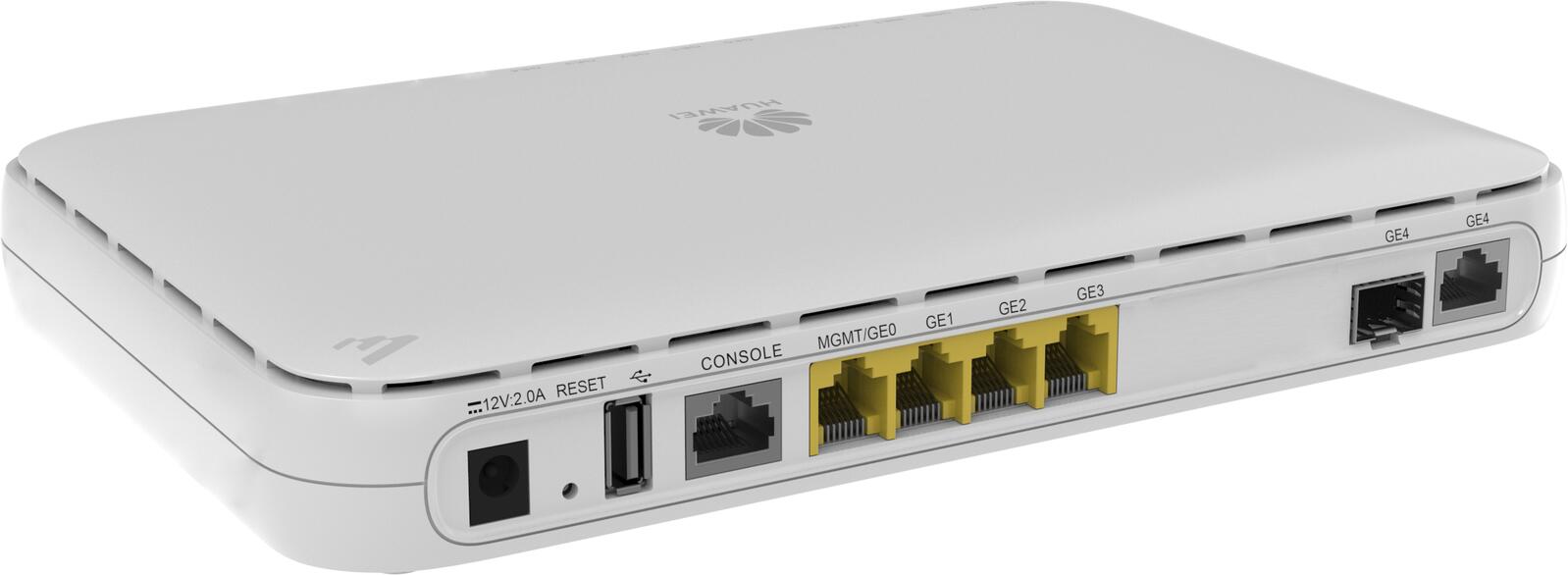

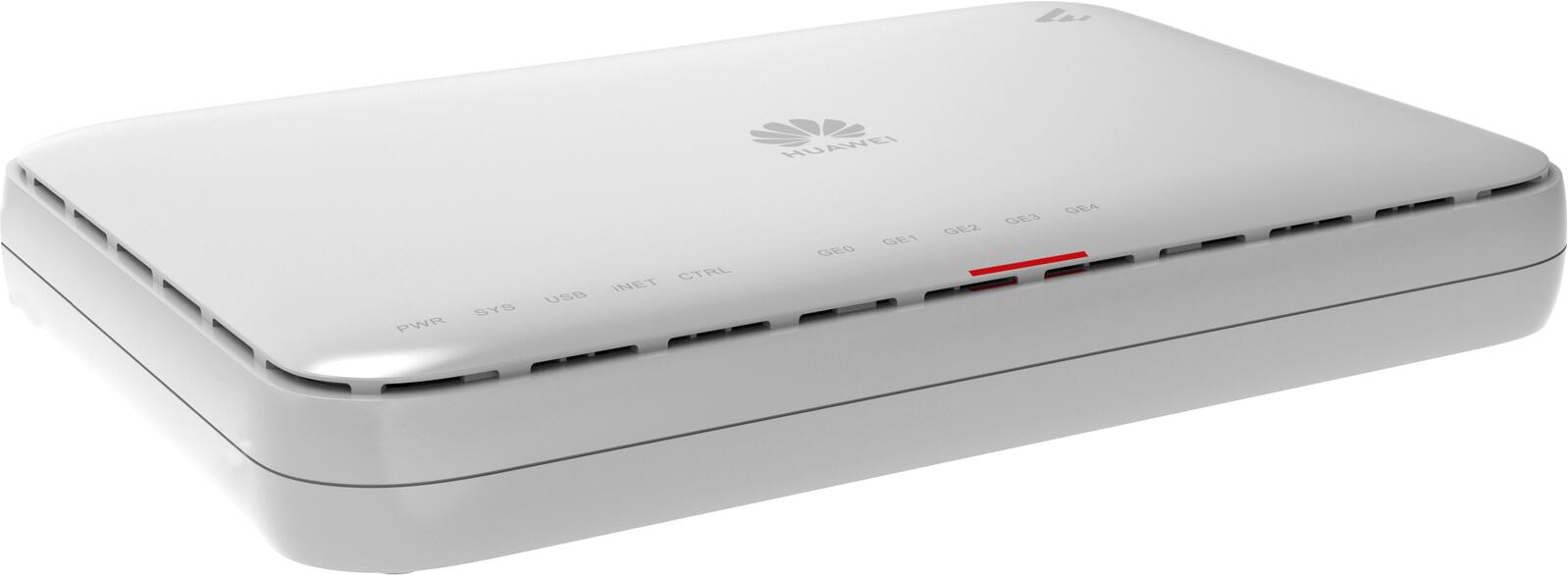

Huawei eKit Gateway AR303 4x 1GbE LAN + 1x GbE Combo WAN 50010533

Installation type •Work bench •Against the wall

Dimensions without packaging (H x W x D) [mm(in.)] •Basic dimensions: 38.0 mm x 240.0 mm x 161.5 mm (1.5 in. x 9.45 in. x 6.36 in.) •Maximum dimensions: 41.4 mm x 240.0 mm x 161.5 mm (1.63 in. x 9.45 in. x 6.36 in.)

Dimensions with packaging (H x W x D) [mm(in.)] 90 mm x 370 mm x 297 mm (3.54 in. x 14.57 in. x 11.69 in.)

Chassis height [U] 1 U

Weight with packaging [kg(lb)] 1.18 kg (2.60 lb)

Weight without packaging [kg(lb)] 0.58 kg (1.28 lb)

Console port RJ45

RTC Supported

Typical power consumption [W] 9 W

Maximum power consumption [W] 12 W

Power supply mode AC external

Number of power modules 1

Rated input voltage [V] 110 V to 220 V, 50 Hz/60 Hz

Input voltage range [V] 90 V to 270 V, 45 Hz to 65 Hz

Maximum input current [A] 0.8 A

Maximum output power [W] 24 W

LAN ports 4 x GE electrical interfaces

WAN ports 1 x GE Combo WAN

Long-term operating temperature [°C(°F)] 0°C to 40°C (32°F to 104°F) NOTE: When the altitude is 1800 m-5000 m (5906 ft.-16404.2 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).

Storage temperature [°C(°F)] -40°C to +70°C (-40°F to +158°F)

Long-term operating relative humidity [RH] 5% RH to 95% RH, non-condensing

Long-term operating altitude [m(ft.)] < 5000 m (16404.2 ft.)

IP rating IP20

Environmental standards compliance RoHS REACH WEEE
