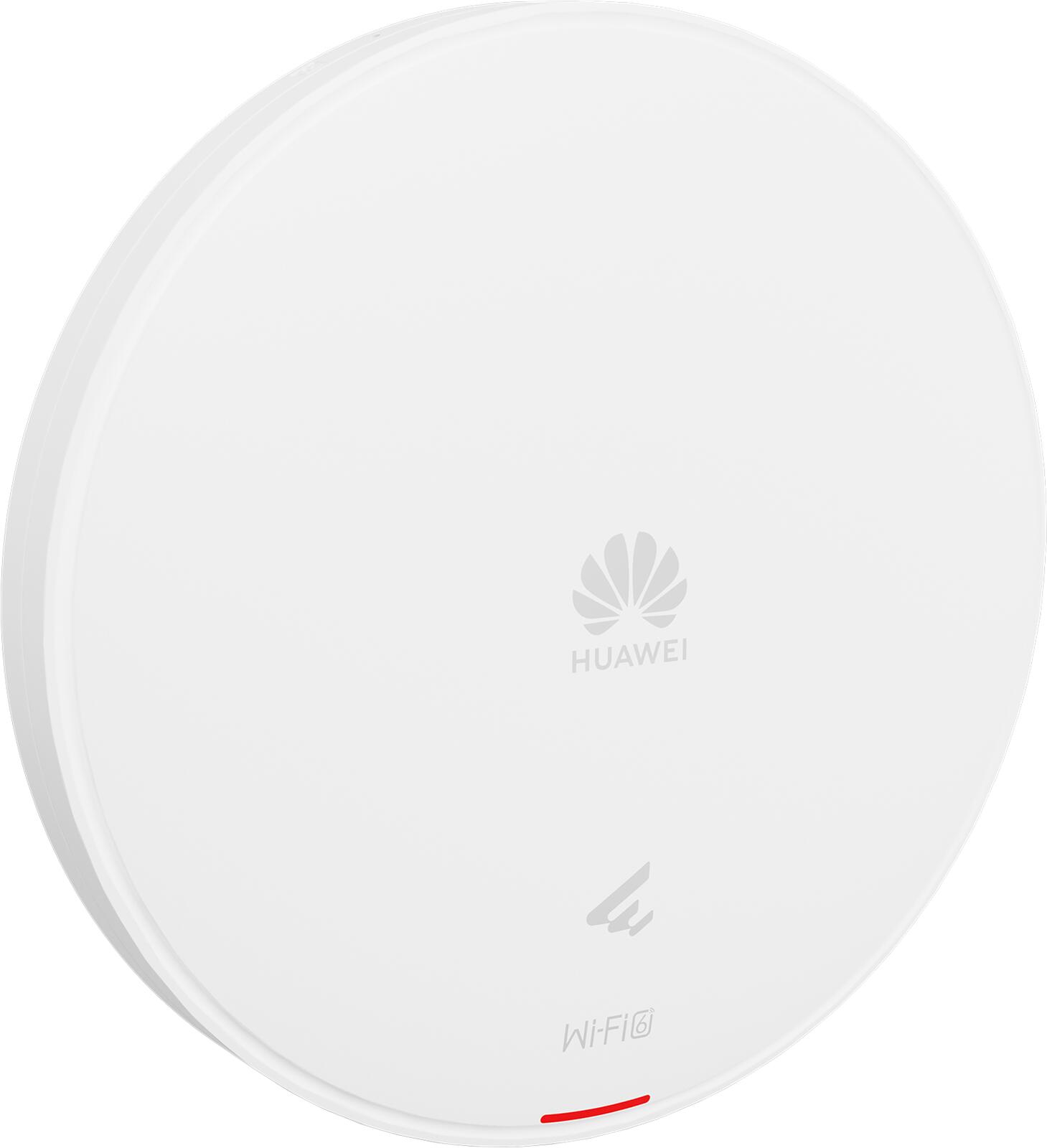

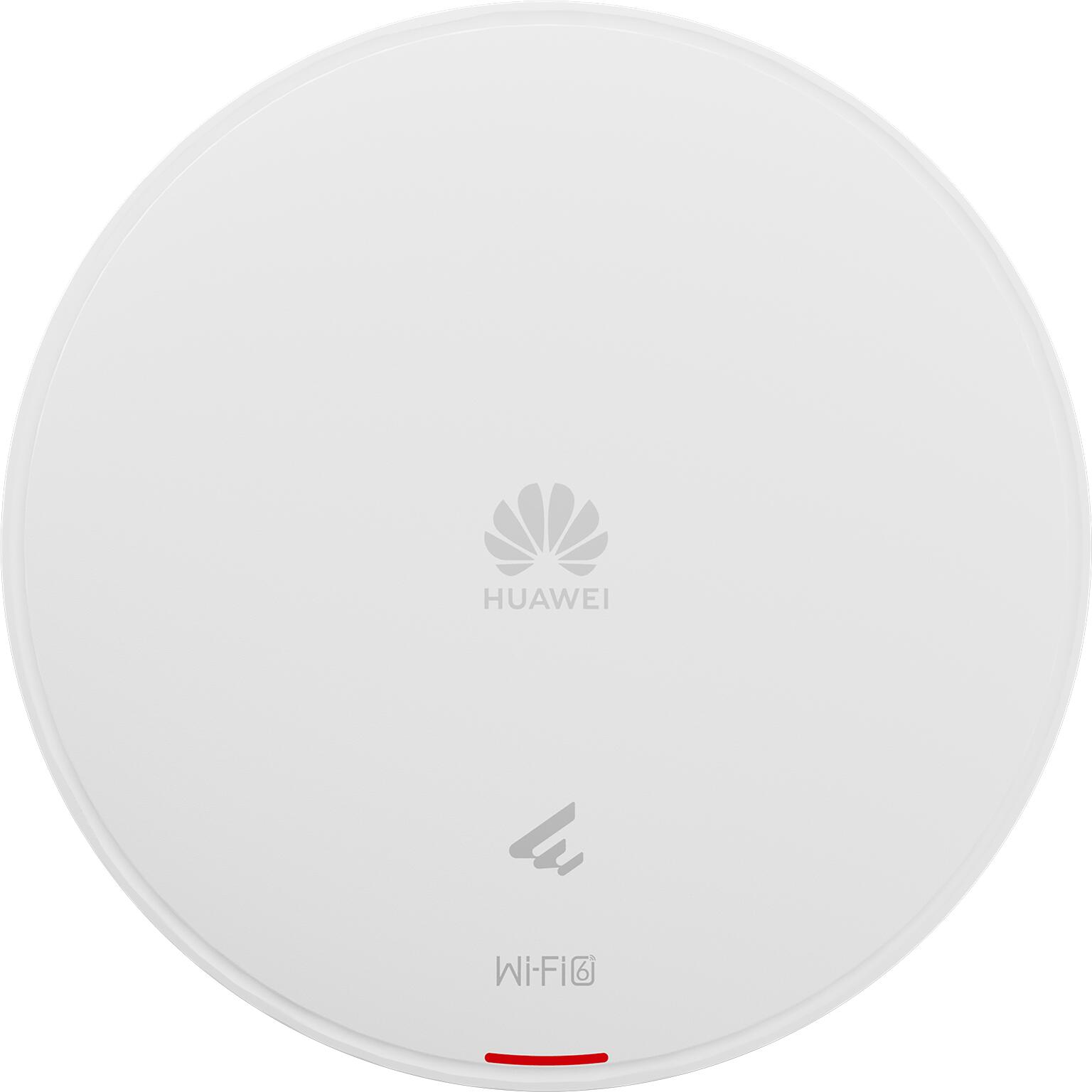

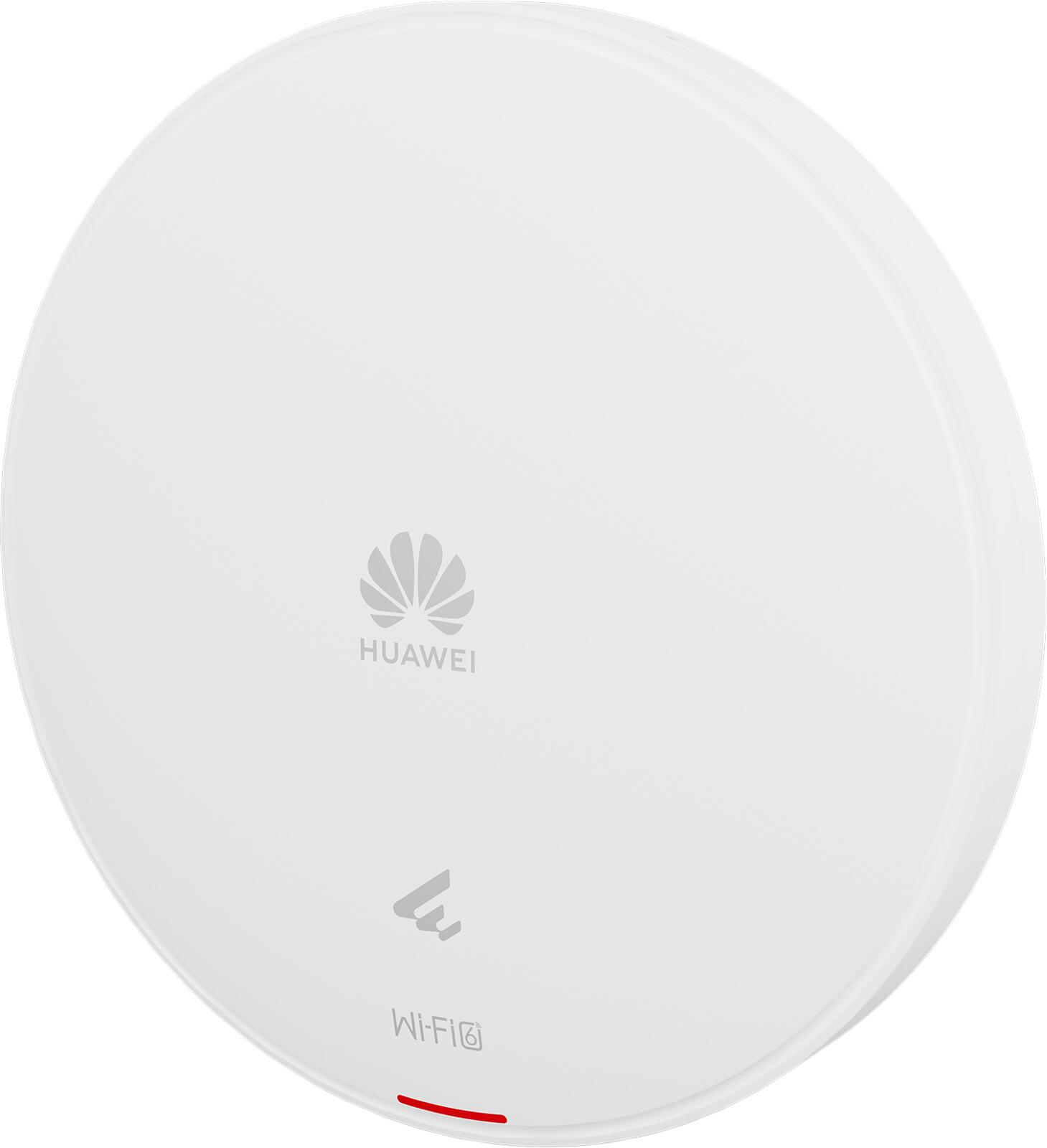

Huawei eKit Access Point A661 WiFi 6 802.11ax 2+2+4 TriBand Indoor 02355VFC

Installation Type Wall,Ceiling,T-Rail

Dimensions without packaging (H x W x D) [mm(in.)] 220 mm x 50 mm

Weight without packaging [kg(lb)] 1.08 kg

Power supply mode DC/ PoE

Input voltage range [V] DC: 12 V ± 10% PoE: 802.3at/af

Service port surge protection PoE port: Common mode (8 wires to ground): 4 kV (1.2/50 us, 42 ohms), criterion B Differential mode (48 V-RTN): 0.5 kV (1.2/50 us, 42 ohms), criterion B

Maximum number of physical ports on the entire device GE (RJ45) x 1, 10M/100M/1000M auto-sensing GE (RJ45) x 1, 10M/100M/1000M auto-sensing

Long-term operating temperature [°C(°F)] -10°C to 50°C (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.)

Storage temperature [°C(°F)] –40°C to +70°C

Long-term operating relative humidity [RH] 5% RH to 95% RH

Long-term operating altitude [m(ft.)] –60 m to +5000 m (–196.85 ft to +16404.20 ft)

Atmospheric pressure [kPa] 53kPa - 106kPa ETSI 300 019-2-3

Ground floating ground

Radio number 3

MIMO spatial streams Radio 0 (2.4 GHz): 2x2 Radio 1 (5 GHz): 2x2 Radio 2 (5 GHz): 4x4

Wi-Fi standard 2.4G:802.11b/g/n/ax 5G:802.11a/n/ac/ac wave2/ax

Radio interface Built-in smart antennas

Antenna gain 2.4G: 4 dBi/chain (peak) 2 dBi (combined gain) 5G: 5 dBi/chain (peak value) 3 dBi (combined gain) BLE：4 dBi

Maximum transmit power 2.4G: 22 dBm/chain 25 dBm (combined power) 5G: 20 dBm/chain 23 dBm (combined power) 5G: 20 dBm/chain 26 dBm (combined power) BLE < 10 dBm
