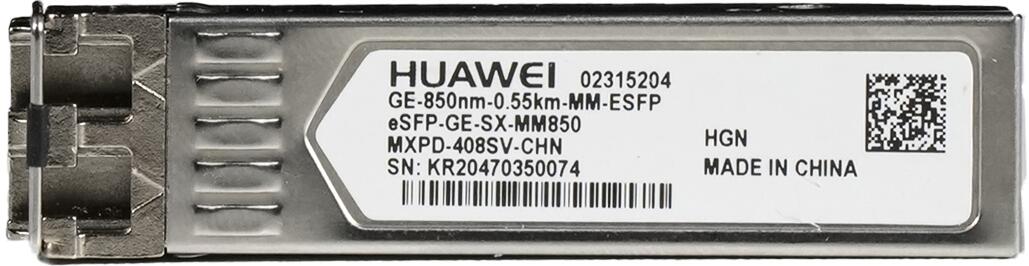

Huawei eKit Transceiver eSFP-GE-SX-MM850 Multi-Mode 1G eSFP LC 0,55km 02315204

Part Number 2315204

Model eSFP-GE-SX-MM850

Description Optical Transceiver,eSFP,GE,Multi-mode Module(850nm,0.55km,LC)

Level-1 category GE eSFP Optical Modules

Module name eSFP-GE-SX-MM850

Connector type LC/DLC

Optical fiber type MMF

Form factor eSFP

Transmission rate [bit/s] 1G

Target transmission distance [km] Multimode optical fiber (diameter: 62.5 μm): 220 m Multi-mode (OM1) optical fiber (diameter: 62.5 μm): 275 m Multimode optical fiber (diameter: 50 μm): 500 m Multimode (OM2) optical fiber (diameter: 50 μm): 550 m

Application standard/Type 1000BASE-SX

Working case temperature [°C(°F)] -20°C to +85°C (-4°F to +185°F)

Type of the end face of the fiber ceramic ferrule PC or UPC

DDM options Supported

Modal bandwidth [MHz*km] Multimode optical fiber: 160 MHz*km Multi-mode (OM1) optical fiber: 200 MHz*km Multimode optical fiber: 400 MHz*km Multi-mode (OM2) optical fiber: 500 MHz*km

Center wavelength [nm] 850

Overload power (AVG) [dbm] 0

Minimum Tx optical power (AVG) [dbm] -9.5

Maximum Tx optical power (AVG) [dbm] -2.5

Minimum extinction ratio [db] 9

Rx sensitivity (OMA) [dbm] -17
